How does a gantry crane work

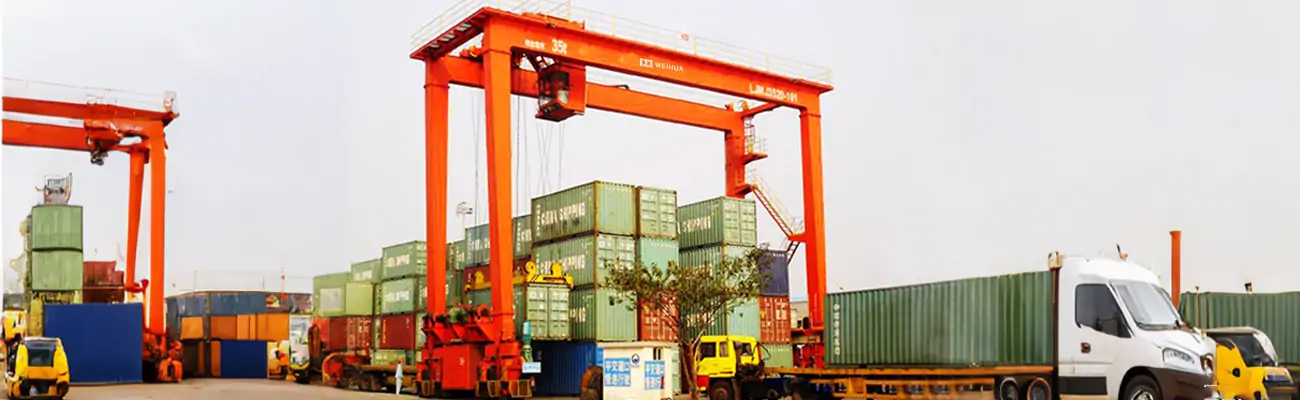

A gantry crane is a mechanism that can move big things at its most basic level. These things are moved by suspending them from cables and pulleys connected to an above rail. Cranes come in a variety of shapes and sizes, but their principal function is always the same: lifting big objects for construction and industry. This post will go over all you need to know about this crucial piece of equipment.


The word “gantry crane” is used to denote a variety of hoisting mechanisms. As a result, it’s critical to know exactly what a gantry crane is and what systems belong into this category.

A gantry crane is erected on top of a gantry, which is a structure that is used to straddle an item or workplace. Gantry cranes come in a variety of sizes, from complete gantry cranes that can carry some of the world’s biggest weights to semi-gantry cranes that can lift things like automobile engines.

Gantry cranes are frequently used to lift and carry items or equipment between places. Gantry cranes have a wide range of applications, from workshops and warehouses to large rail and shipping yards.

One of the most notable characteristics of gantry cranes is its capacity to function both inside and outside. Smaller gantry cranes are frequently used in warehouses where larger gear is not permitted. Rail yards, shipping businesses, and other industrial sectors that handle significant volumes of commodities on a regular basis frequently use larger gantry cranes.


Gantry cranes typically feature one or two inverted V-shaped legs connected by a crossbeam. Several lifting methods can be installed on the crane’s top crossbeam. Many Gantry crane variations use wheels or a track/rail system to move the lifting mechanism up and down on the top crossbeam.


In today’s world, gantry cranes serve a multitude of purposes. One reason is because they may be constructed to function indoors or outside, allowing them to transfer products from rail yards or docks to loading bays and warehouses on one end of the building while readily moving goods from rail yards or ports for further deliveries on the other.

Another reason for their popularity is that most Gantry cranes can rotate 360 degrees, making them suitable for usage both indoors and outside.

Because of their efficiency, cost-effectiveness, and convenience of use, gantry cranes have become indispensable in many building projects. They enable heavy lifting capability to be achieved swiftly and with little effort on the crane operator’s side. When compared to conventional lifting methods, this can save both time and money.


Gantry cranes are available in a wide range of designs and sizes. There are several varieties, each with its unique set of characteristics:

The full gantry crane has two supporting legs that travel on fixed tracks, making it one of the most frequent gantry cranes. This crane works in a specific location and allows cars to pass below it effortlessly. The trolley moves within the main span, and there is no overhang on the main beam.

Semi-gantry cranes feature a single leg that runs parallel to the ground and another that travels parallel to a runway system attached to a wall or other vertical structure. The height difference between the two legs, on the other hand, is a matter of your site or demands.

Portable Gantry Crane: This gantry crane is simple to set up and take down on job sites, and it offers more versatility than others. It is, however, tiny and can only manage little weights.

Gantry Cranes with Changeable Height: A gantry crane with adjustable height can be mobile or stationary. It does, however, have an adjustable design with height and width options. You may change the base’s width, height, and horizontal beam length to meet your needs.

Single Girder Gantry Crane: This crane requires only a single girder and rail. Typically, the trolley and hoist are under-hung. They work below the bridge’s surface. It is also a light-to-medium-duty crane that is well-suited to work situations with limited headroom. Furthermore, it provides cost-effective lifting solutions.

Double Girder Gantry Crane: The bridge is made up of two girder beams in this type of crane. A top-running trolley and hoist are usually included. It’s suitable for heavy-duty applications.
